MADE IN THE USA



G11GT
EQUATORIAL MOUNT
75 lb. ASTROPHOTOGRAPHY WEIGHT CAPACITY


G11GT-LT(Less Tripod):
G11GT:




$3,995.00
$4,395.00

Click HERE for Pricing details






Equatorial Telescope Mount

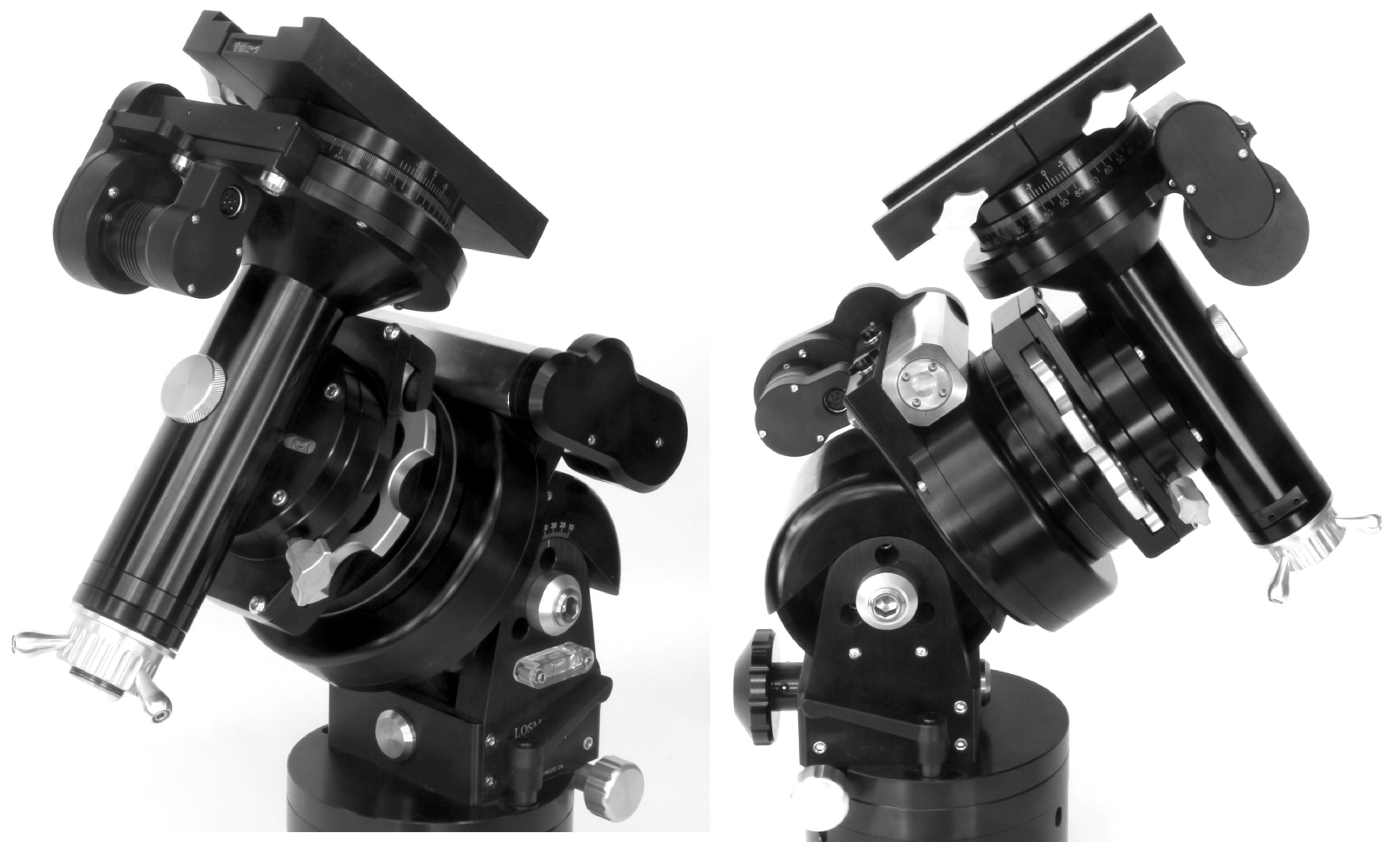

Click for Larger ImageEquatorial Head GOTO Telescope Mount



G11GT FEATURES

  • Photographic instrument weight capacity 75 lbs
  • Tracking: +/- 5 arc sec. or better
  • Low temperature operation: 0 F
  • Equatorial Head Weight 62 lbs.
  • Splits into two pieces for transport: R.A. 44 lbs and DEC. 18 lbs
  • Removable counterweight shaft with safety stop; 1.25” diameter
  • Includes one 21 lb weight
  • Split dovetail saddle plate design. Works with both Losmandy Style and Vixen Dovetails
  • Dovetail plate drops in and locks allowing for interchanging of any tube assembly - reduces the need for DEC weights.
  • Off axis polar scope, works in Northern and Southern hemisphere (Polar Scope Optional)
  • 7 lb and 11 lb extra counterweights available

Click for Larger ImageEquatorial Head GOTO Telescope Mount

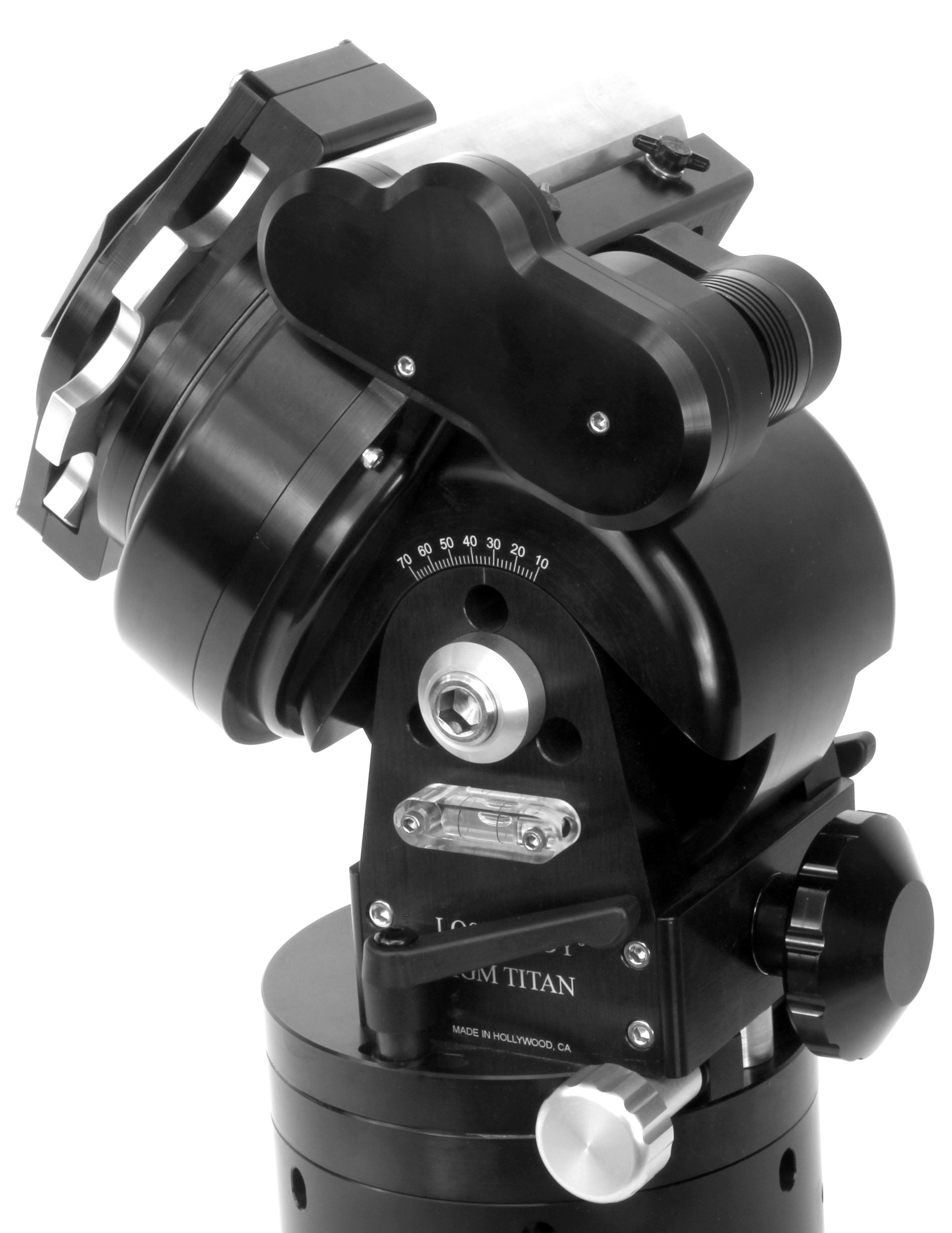

SPECIFICATION: R.A. AXIS

  • All machined aluminum and stainless steel, black anodized.
  • Shaft 1.96” diameter stainless steel tubing, .250” wall thickness
  • Worm Gear 6.750” diameter, 270 tooth, 7075 aluminum - special coating
  • Worm precision ground brass
  • Single piece worm housing construction, double ended, ball bearing supported with adjustable preload
  • 5.062” diameter needle thrust bearings
  • 3.500” diameter sealed ball bearings
  • 3.100” diameter sealed ball bearings for worm gear.
  • Fully locking, unique tangent arm design altitude adjustment, 12-70 degrees, large knob for easy alignment.
  • Laser engraved latitude scale in 2 degree increments.
  • Single knob azimuth control, bi-directional +/- 10 degrees, X/Y axis leveling bubbles.
  • Variable slip clutch, 6.0” diameter one knob design.
  • 360 degree DEC. axis rotation allowing for continuous photographing through the meridian.
  • Fully enclosed R.A. worm gear.
  • RA Axis weight 44 lbs.

Click for Larger ImageEquatorial Head GOTO Telescope Mount

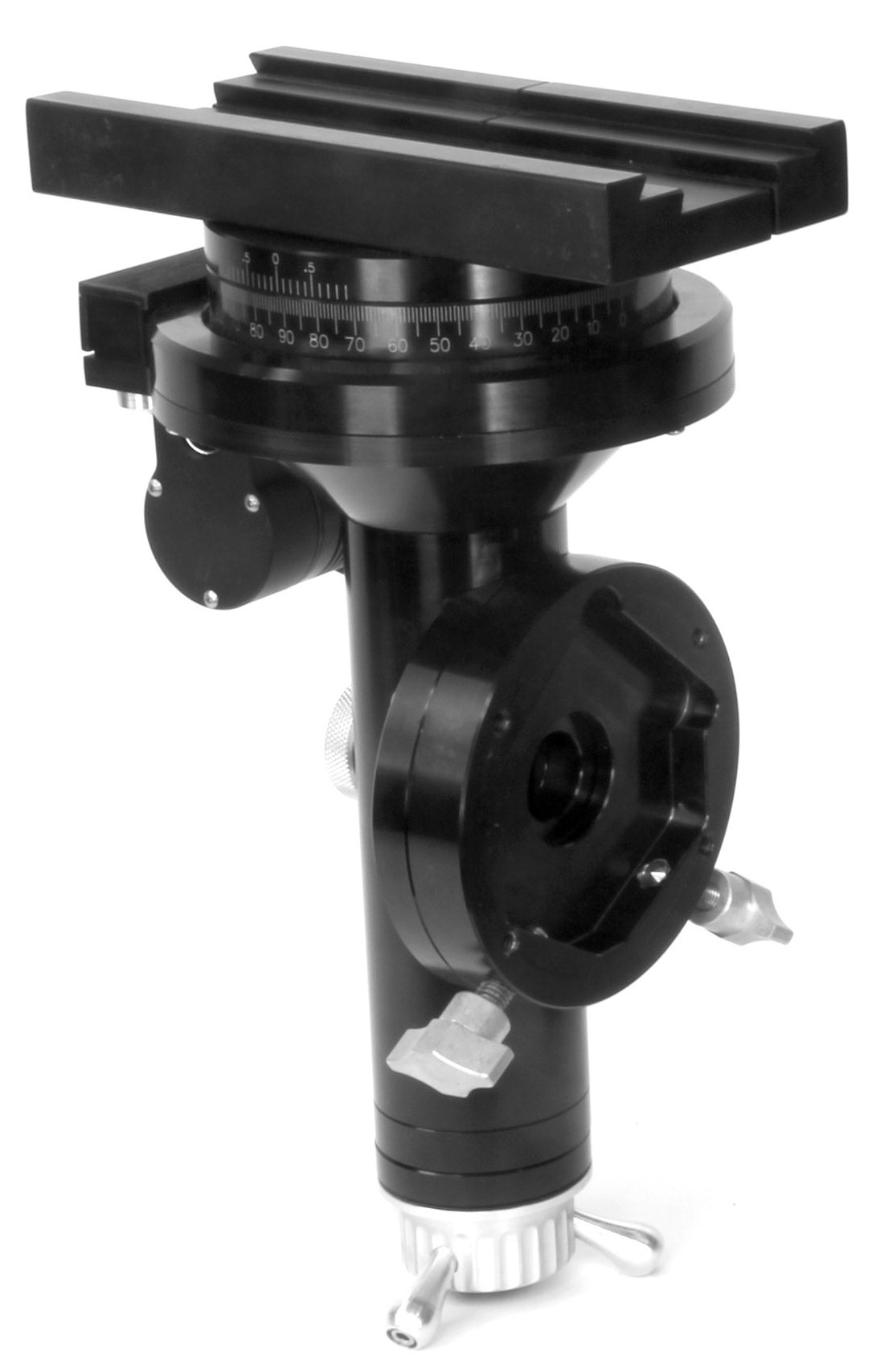

SPECIFICATION: DEC AXIS

  • All machined aluminum and stainless steel, black anodized.
  • All stainless steel hardware
  • One 3.750” diameter needle thrust bearings
  • One 2.000” diameter needle thrust bearings
  • Two 1.500” diameter needle bearings
  • 5.625” diameter, 7075 aluminum worm gear, 360 tooth
  • Dual supported ball bearing housed ground High Precision Brass Wrom.
  • Variable slip clutch, one knob design.
  • 1.250” diameter stainless steel shaft.
  • DEC. Axis weight 18 lbs.


Click for Larger ImageTelescope Tripod Folding





FOLDING HD TRIPOD

All machined aluminum, black anodized

Tripod height, adjustable from 33” - 48”

Folding leg design for easy transporting.

Tripod weight 35 lbs.




Click for Larger ImageHeavy Duty Folding Telescope Tripod




DRIVE ELECTRONIC - GEMINI 2 GOTO

GEMINI 2 GOTO ELECTRONICS (G)

  • Full Color Graphic Touch Screen clearly displays all functions.
  • Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and tactile membrane on the rear.
  • Periodic Error Correction (PEC).
  • Programmable DEC. Backlash Compensation (TVC).
  • Control panel dimmer, Day and Night Modes.
  • Accepts auto-guider systems.
  • Northern and Southern Hemisphere operation.
  • Tiltable control panel for easy access.
  • Stand Alone System. No PC required
  • Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or Serial Port
  • DC Servos for imporved accuracy with higher torque than steppers
  • Non-Volatile Memory and Real-Time Clock
  • English, German, French & Spanish displays
  • Over 40,000 objects
  • USB ports; Virtual COM to PC, ASCOM or planetarium program.
  • Firmware upgrade via internet
  • Auto Guide Port (TTL)
  • Dual 12-18V DC input/output (3.0A)


PRICING DETAILS    -    Prices in US Dollars
G11GT-LT Equatorial Head, Gemini 2 Drive, Weight Shaft, and 21 lb. weight. 3,995.00
G11GT Equatorial Head, Gemini 2 Goto, Weight Shaft, Folding HD Tripod and 21 lb. weight. 4,395.00
