LOSMANDY AZ8 ALT / AZ MOUNT

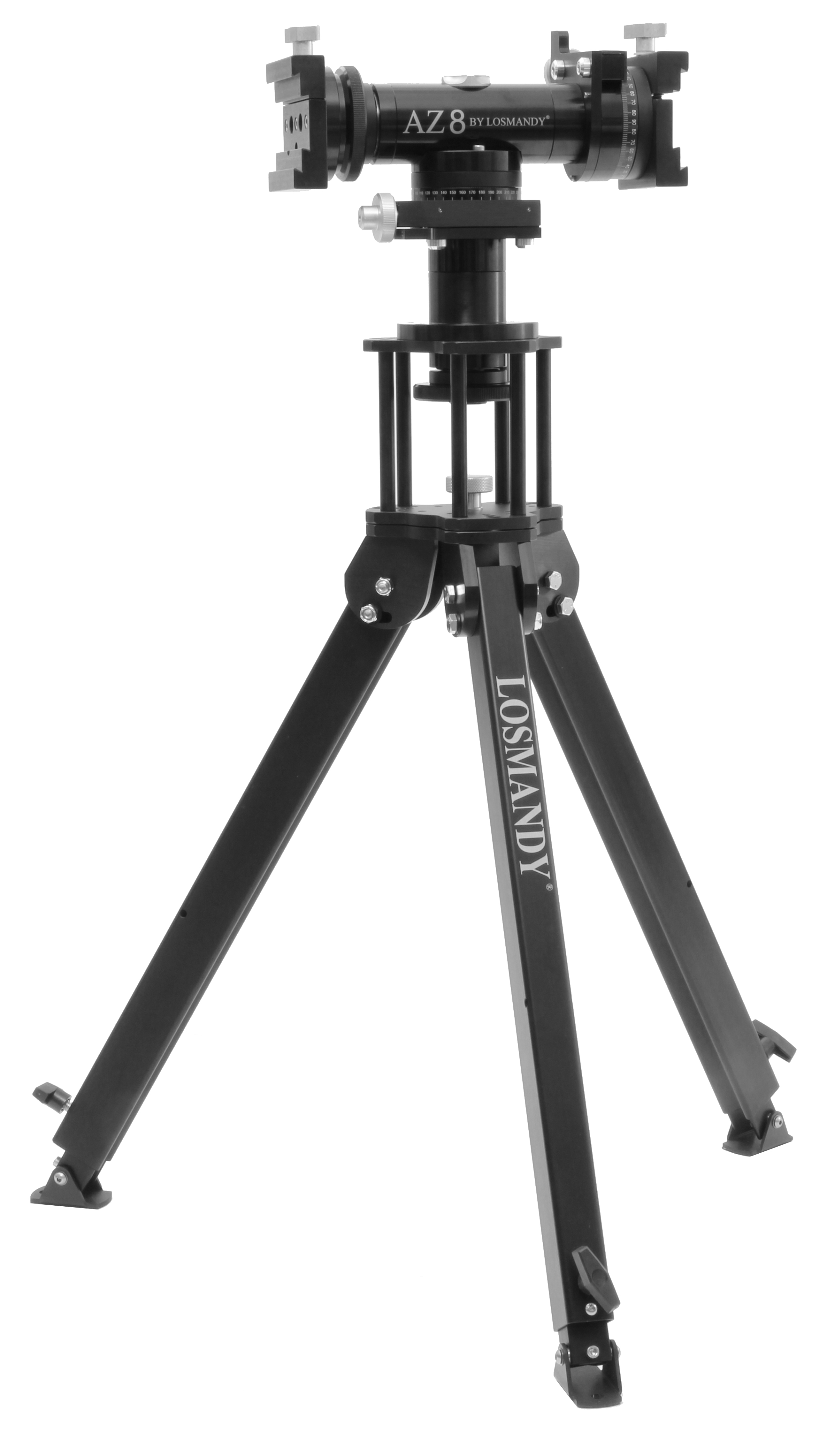

Click for Larger ImageAZ8

  • All machined aluminum and stainless steel, black anodized
  • All stainless steel hardware.
  • One 2.100” diameter needle thrust bearing.
  • One 2.000” diameter needle thrust bearing.
  • Two 1.500” diameter needle bearings.
  • 360 degree slow motion control, both axes
  • 2.812” diameter, 7075 aluminum worm gear, 180 tooth.
  • Dual supported, ball bearing housed ground High Precision Brass Worm.
  • Variable slip clutch, both axes. One knob per axis design.
  • 3.5” diameter Laser engraved setting circles.
  • Bubble level
  • 1.250” diameter aluminum shafts.
  • Twin saddle plates. Accepts Losmandy D & V series dovetail plates.
  • Instrument Weight Capacity 35 LBS per side.
  • Head weight 13 lbs.
  • Tripod with 6” riser. Adjustable from 29” to 46”
  • Tripod weight 13 lbs.
  • Optional additional 6” risers, stackable

AZ8 ALT / AZ mount with tripod $995


Click for Larger ImageAZ8 knob and saddle





360 Degree slow motion knob.

Saddle plate for Losmandy D & V series dovetail plates

Laser Engraved Setting Circles






Click for Larger ImageAZ8 Head





Variable Slip Clutch Knob

Twin Dovetail Plates

360 Degree slow motion azimuth knob






Click for Larger ImageAZ8 Optional Tripod Coupler





Optional Tripod Coupler $80


Click for Larger ImageAZ8 Optional Riser





Optional 6 inch Riser $100


AZ8WS
Weight System

$59.00



az8ws
Click for larger image


For use to balance the system when only one telescope is used.

Includes Vixen Bar with Threaded Shaft and One 5 Pound Weight.
